| Lecture | 22 |
| Class Objectives | Have a firm understanding of the datapath and control needed to realize a circuit that can extract 8 digitized samples from the AD7606 and display rough magnitude information on 4 LEDs. |
| Handout | Lab 3 datapath and control |

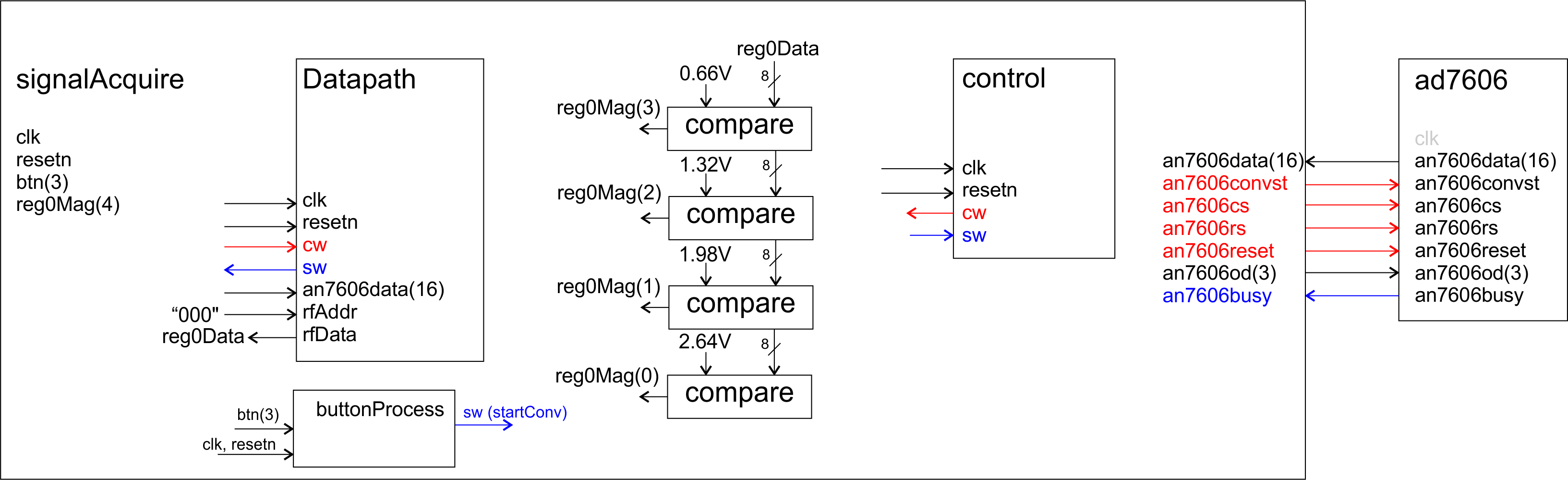

Architecture

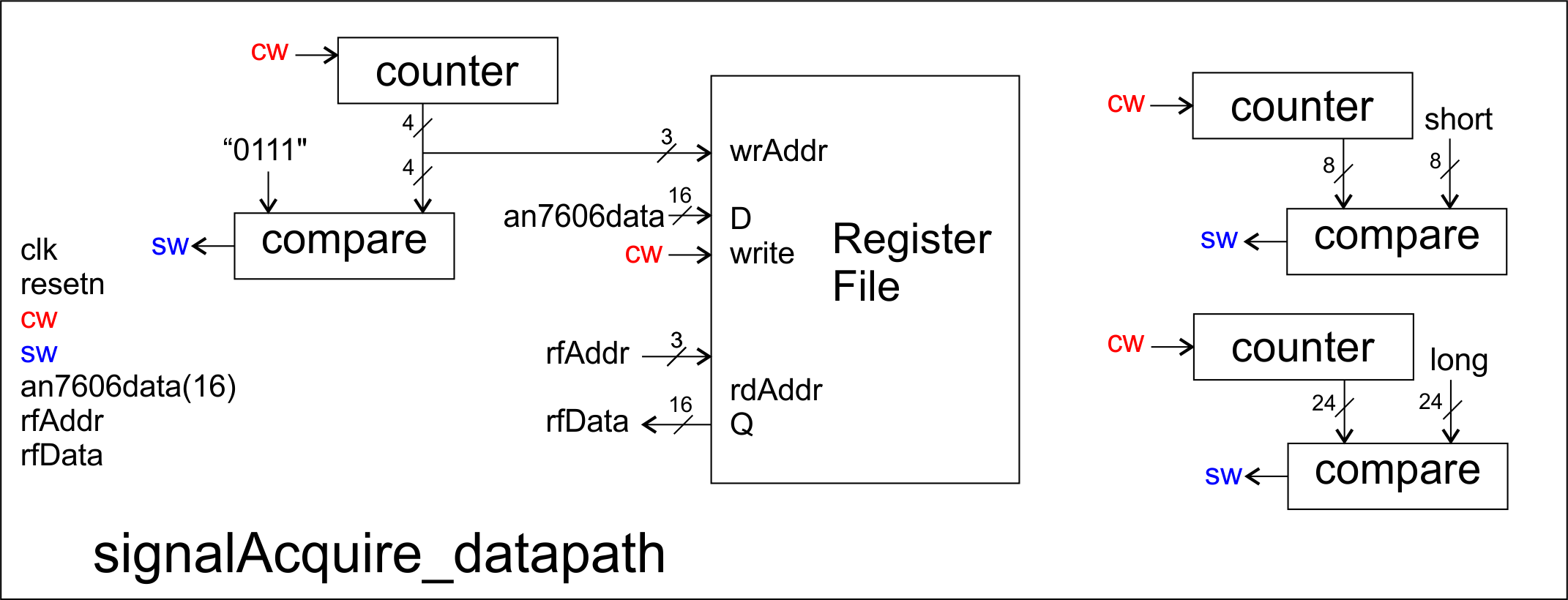

Datapath

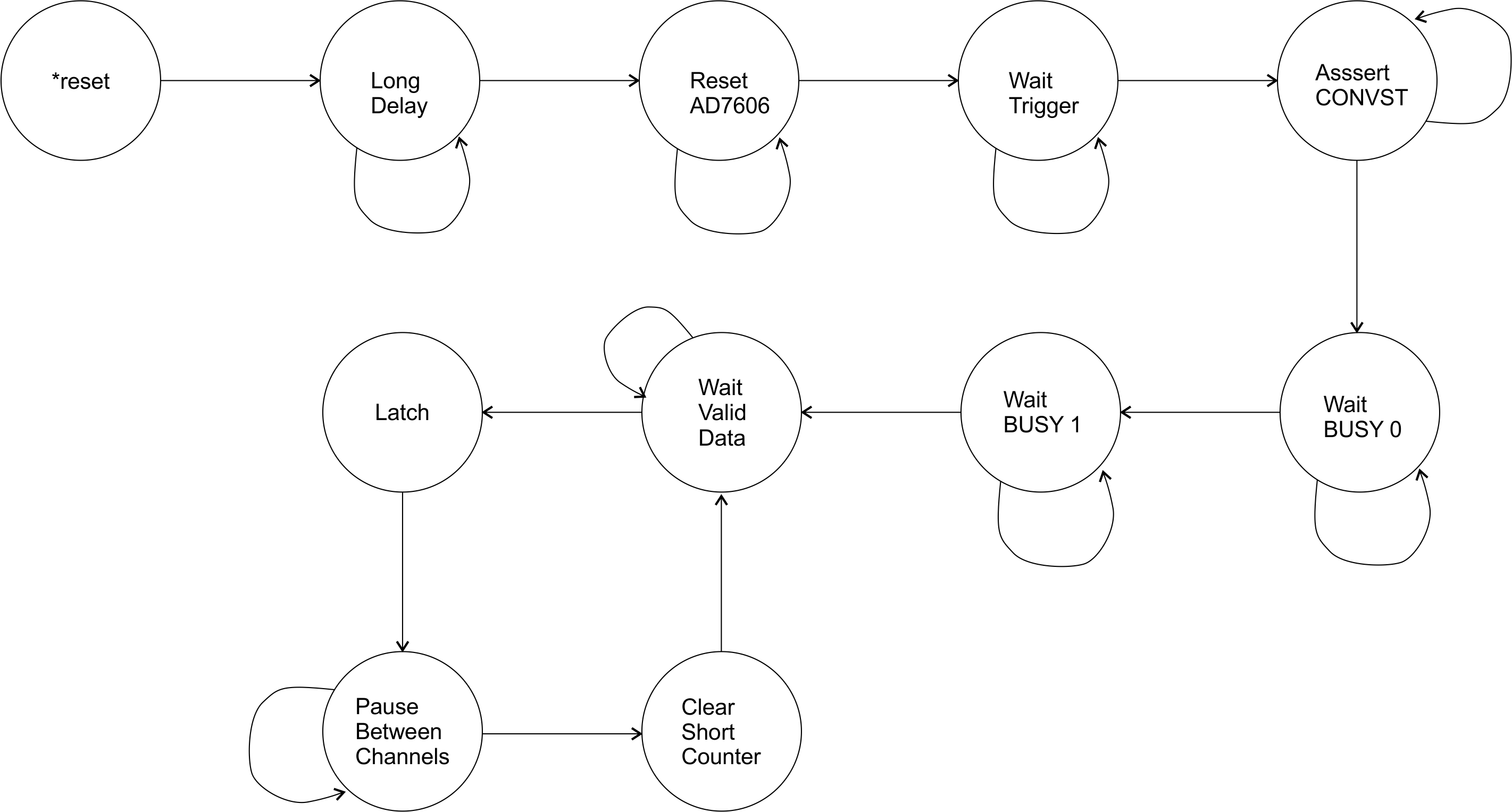

Control
Control Word Table
| State | RF Write | RF Counter |
| RESET |
XDC file
You will need to complete the following table.| AN706 header | J10 Header | Zynq7010 pin |
| OS1 | EX_IO1_1N | |
| OS0 | EX_IO1_1P | |
| CONVSTAB | EX_IO1_2N | |
| OS2 | EX_IO1_2P |
